Key Features
Hydromax valve offers a complete line of hydraulic solenoid valve V2070-TOA-28 to serve virtually every industry with high qualitative and reliable customer oriented tailored products. We offer many solutions to your hydraforce solenoid valve, hydraulic solenoid valve, hydraulic valves, hydraulic manifold, hydraulic repair, rexroth valve needs. To help find the right product for your project, reference this selection guide.
Product Information
Product Category: Cartridge Solenoid Check Valve

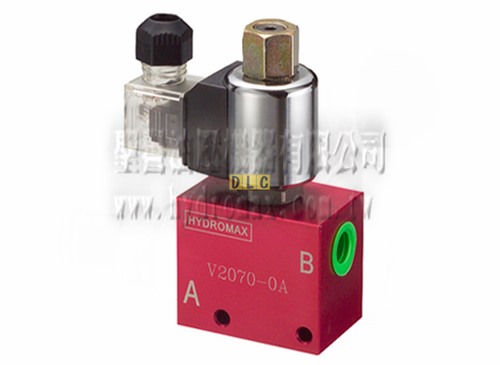

Item: Cartridge Solenoid Check Valve 250kg- V2070-TOA-28-S-P-D24-DG-25
Brand: HYDROMAX
Model: V2070-TOA-28-S-P-D24-DG-25
Country of Origin: Taiwan
1. Product Information
Product Category: Cartridge Solenoid Check Valve
Item: Cartridge Solenoid Check Valve 250kg - V2070-TOA-28-S-P-D24-DG-25
Brand: HYDROMAX
Model: V2070-TOA-28-S-P-D24-DG-25
Country of Origin: Taiwan

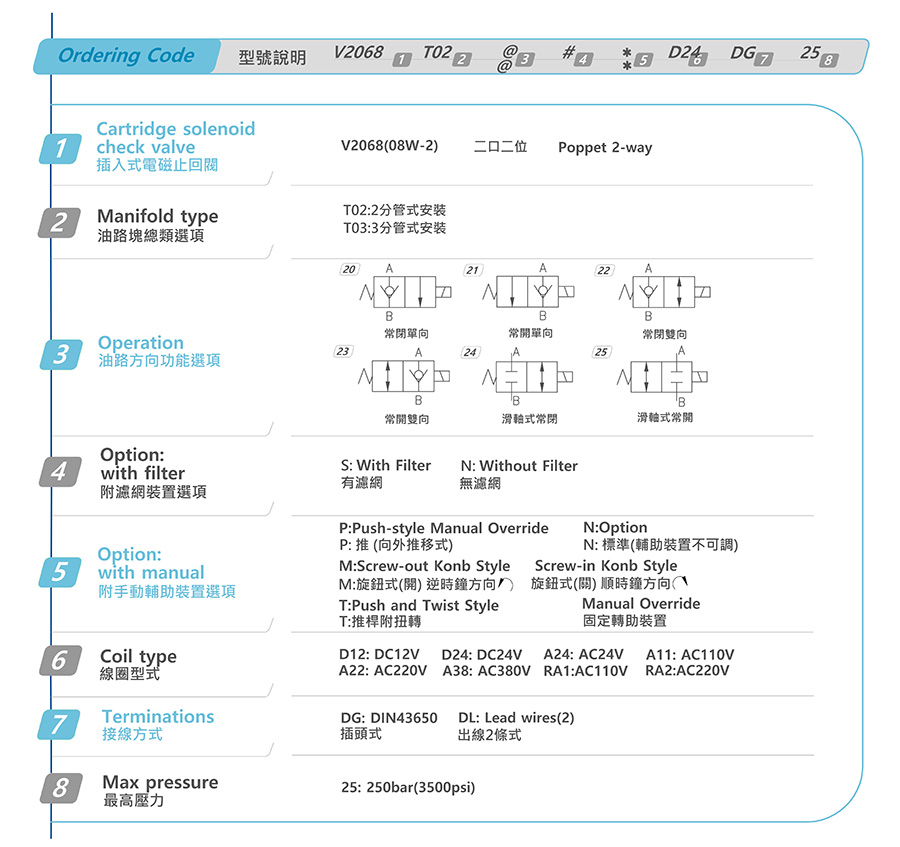

2. Ordering Code
|
V2070
|
OA
|
-@@
|
-#
|
-*
|
-D24
|
-DG
|
-25
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
1
|
V2070
|
Cartridge Solenoid Check Valve
V2070(08W-2) Poppet 2-Way
|
|
2
|
OA
|
OA:(T03-Inlet & Outlet 3/8"PT)
1 in 1 out
OB:(T03-Inlet & Outlet 3/8"PT)
2 in 1 out
G02:2/8" Subplate Installed
T02:2/8" Piping Installed
T03:3/8" Piping Installed
|
|
3
|
-@@
|
Operation
26:Low Flow Normally closed Bi-Directional Lock
28:Normally closed Bi-Directional Lock
29:Normally Open Bi-Directional Lock
|
|
4
|
-#
|
Option: with filter
S:with filter
N:without filter
|
|
5
|
-*
|
Option: with manual
N:Option
P:Push-Style Manual Override
M:Screw-out Knob Style Screw-in Knob Style
|
|
6
|
-D24
|
Coil Type
D12:DC12V D24:DC24V
A24:AC24V A11:AC110V
A22:AV220V A38:AC380V
RA1:RAC110V RA2:RAC220V
|
|
7
|
-DG
|
Terminations
DG: DIN43650
DL: Lead Wire (2)
|
|
8
|
-25
|
Max pressure
25:250bar (3550psi)
|

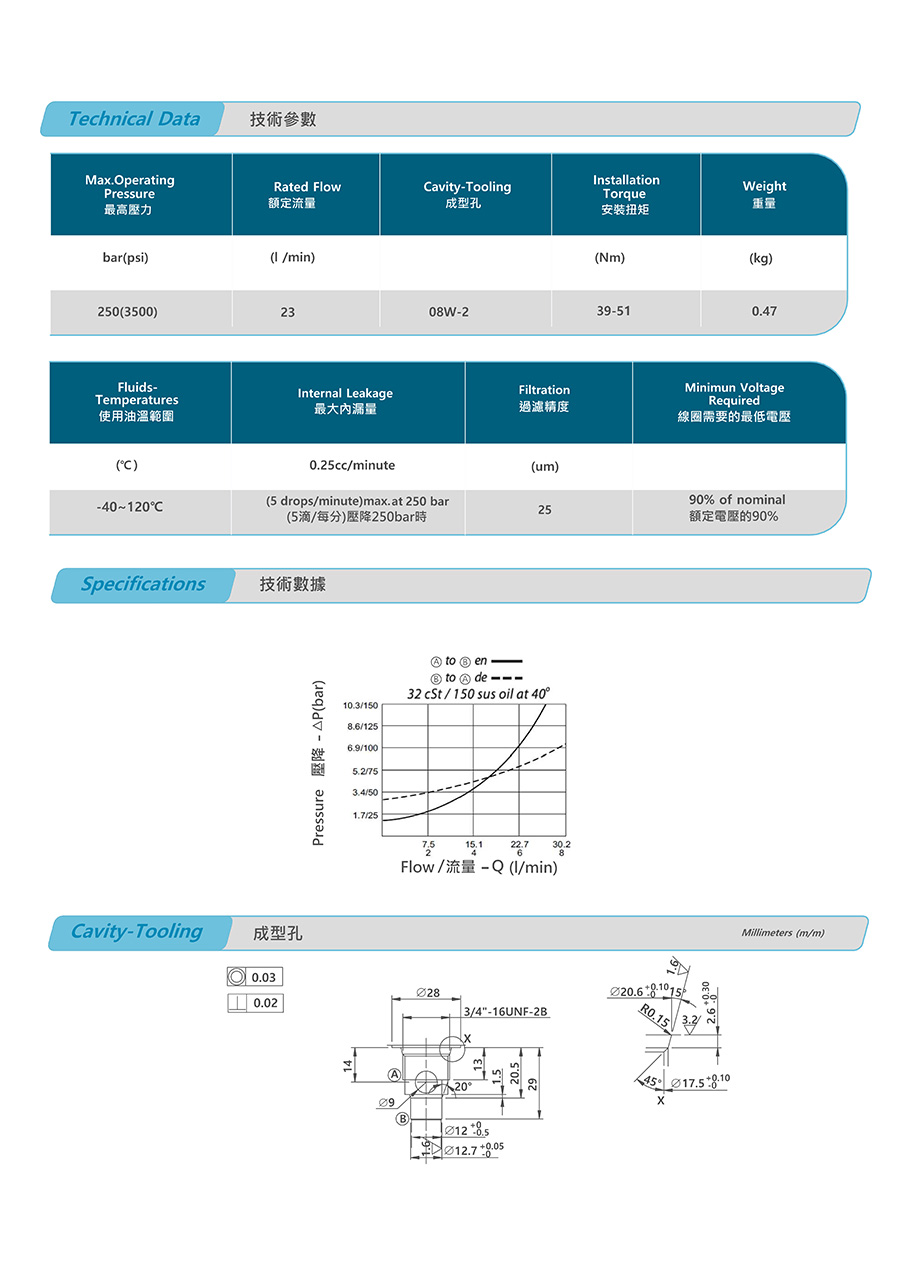

3. Specification
|
Max Operating pressure
|
Rated flow
|
Cavity-
Tooling
|
Installation torque
|
Weight
|
|
250 bar(psi)
|
15(l/min)
|
08W-2
|
39-51(Nm)
|
0.64(kg)
|
|
Fluid-
Temperatures
|
Internal Leakage
|
Filtration
|
Minimum Voltage Required
|
|
(-)20~120 ℃
|
0.15cc/minute
|
25(um)
|
90% of nominal
|
|
|
3 drops/minute
max. at 250bar
|
|
|
Specification
|
Max Operating pressure
|
Rated flow
|
Cavity-
Tooling
|
Installation torque
|
Weight
|
|
250 bar(psi)
|
15(l/min)
|
08W-2
|
39-51(Nm)
|
0.64(kg)
|
|
Fluid-
Temperatures
|
Internal Leakage
|
Filtration
|
Minimum Voltage Required
|
|
(-)20~120 ℃
|
0.15cc/minute
|
25(um)
|
90% of nominal
|
|
|
3 drops/minute
max. at 250bar
|
|
|
