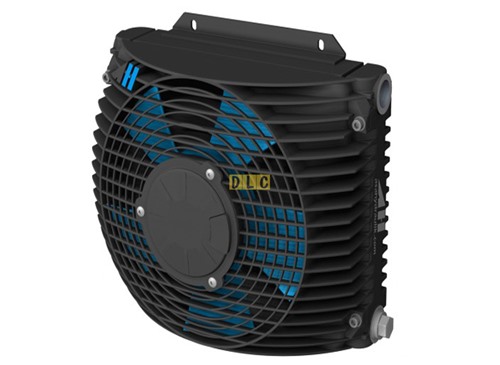

ASA Hydraulic oil cooler - LL LowLine 06

TECHNICAL DATA:

- ASATT06GD03

- ASATT06GD04

Electronic

Coolers that are labeled with the shown symbol are available with various electronic controls.

Temperature Control

The temperature control consists of a temperature sensor and a control unit that controls the fan speed according the actual oil temperature. This lowers the noise level of the cooler and increases the durability of the fan motor, because it is not running on maximum speed all the time.

Thermostat

Also available are various thermostats for all coolers types.

Systems / Bypass

The symbol shown on the side stands for the possibility of an integrated bypass the cooler.

Principle

By integrating a bypass system in an ASA radiator, it is possible to avoid overstressing the cooler at cold start conditions (when the oil is extremely viscous)

This mode of construction also reduces high oil flows through the radiator that can for example occur when hydraulic cylinders are used.

Mounting

This symbol labels coolers with different mounting systems to choose. If desired, our coolers can be delivered with mounting arrangements and protection housings, which serve for flexible and economic mounting in many assembly situations. The mechanical stress in mobile applications can be reduced by rubber shock absorbers between the protection housing and the cooler.
