Key Features
Hydromax offers a complete hydraulic lift valve - V2073-GT3-07-M-04-D24-DG-35 to serve virtually every industry with high qualitative and reliable customer oriented tailored products. We offer many solutions to your hydraulic solenoid valve, hydraulic lift, hydraulic system, hydraulic manifold, hydraforce solenoid valve, solenoid valve manifold needs. To help find the right product for your project, reference this selection guide
1. Product Information
Product Category: Cartridge Solenoid Check Valve

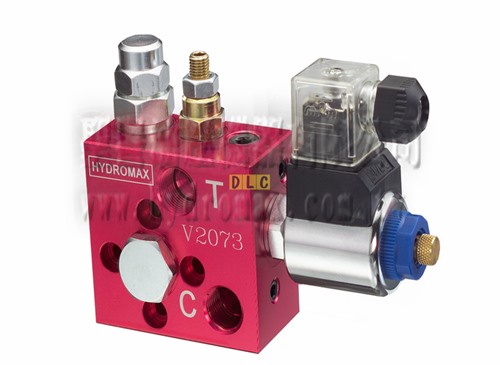

Item: Lift Valve 250/350kg - V2073-GT3-07-M-04-D24-DG-35
Brand: HYDROMAX
Model: V2073-GT3-07-M-04-D24-DG-35
Country of Origin: Taiwan
2. Order code
3. Specification
*Max Operating pressure:350bar(psi)
*Rated flow :30(l/min)
*Cavlity-Tooling:08W-2
| Max Operating pressure |
Rated flow |
Cavlity-Tooling |
Installation torque |
Weight |
| 最高壓力 |
額定流量 |
成型孔 |
安裝扭矩 |
重量 |
| 350 bar(psi) |
30(l/min) |
08W-2 |
39-51(Nm) |
0.93(kg) |
| Fluid-Temperatures |
Internal Leakage |
Filtration |
Minimum Vlotage Required |
| 使用油溫範圍 |
最大內漏量 |
過濾精度 |
線圈需要的最低電壓 |
| 負(-)20~120 ℃ |
0.15cc/minute |
25(um) |
90% of nominal
(額定電壓) |
| |
3 drops/minute
max. at 250bar |
