Hydromax provides a complete line of HGP-3A hydraulic pumps to service most industries with high quality and reliable customer-oriented product compliance. We offer many solutions for your hydraulic gear pump, hydraulic pump repair, gear oil pump needs. To help find the right product for your project, refer to this selection guide.
HGP high pressure gear pump uses high-strength, sealed casting using auxiliary chamber, shaft seal uses floating pressure balance plate, thus achieving high efficiency. The pump has small volume, light weight, good performance, reliable work, etc. Ontology adopts aluminum alloy, high precision mold design, low noise, long service life.
Particularly suitable for petroleum, chemical industry, grain and oil, construction materials, daily chemicals, construction, electric and asphalt concrete mixing plants and industrial fuel injection occasions. Also more suitable for stable work pressure, long-term continuous work, such as: strong lubrication system, etc. Lifting transport machinery, construction machinery, petroleum machinery, machinery agriculture and other mechanical equipment. It is possible with low pressure mass flow propeller pumps to be combined with high and low pump, rational use of main energy, cost savings.
Product catalog: HGP-3A gear pump
Brand: HYDROMAX
Model: HGP-3A
Country of origin: Taiwan

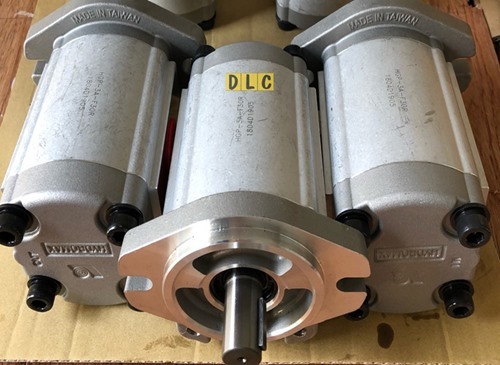

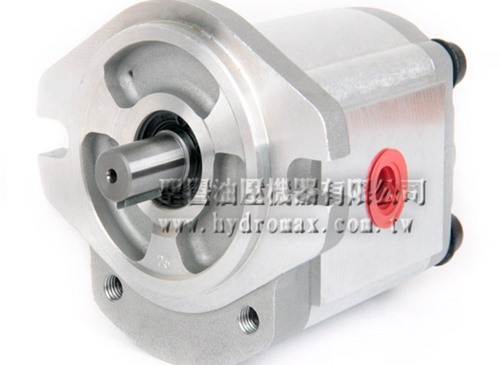

Hydromax gear pump HGP-3A
Mã đặt hàng:
|
Model Name
|
HGP-3A
|
|
Mounting
|
F Flange Type
|
|
L Foot Type
|
|
Delivery Capacity
|
2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35
|
|
Rotation Direction
|
R Clockwise
|
|
L Counter-Clockwise
|
|
M Hydraulic Motor
|
|

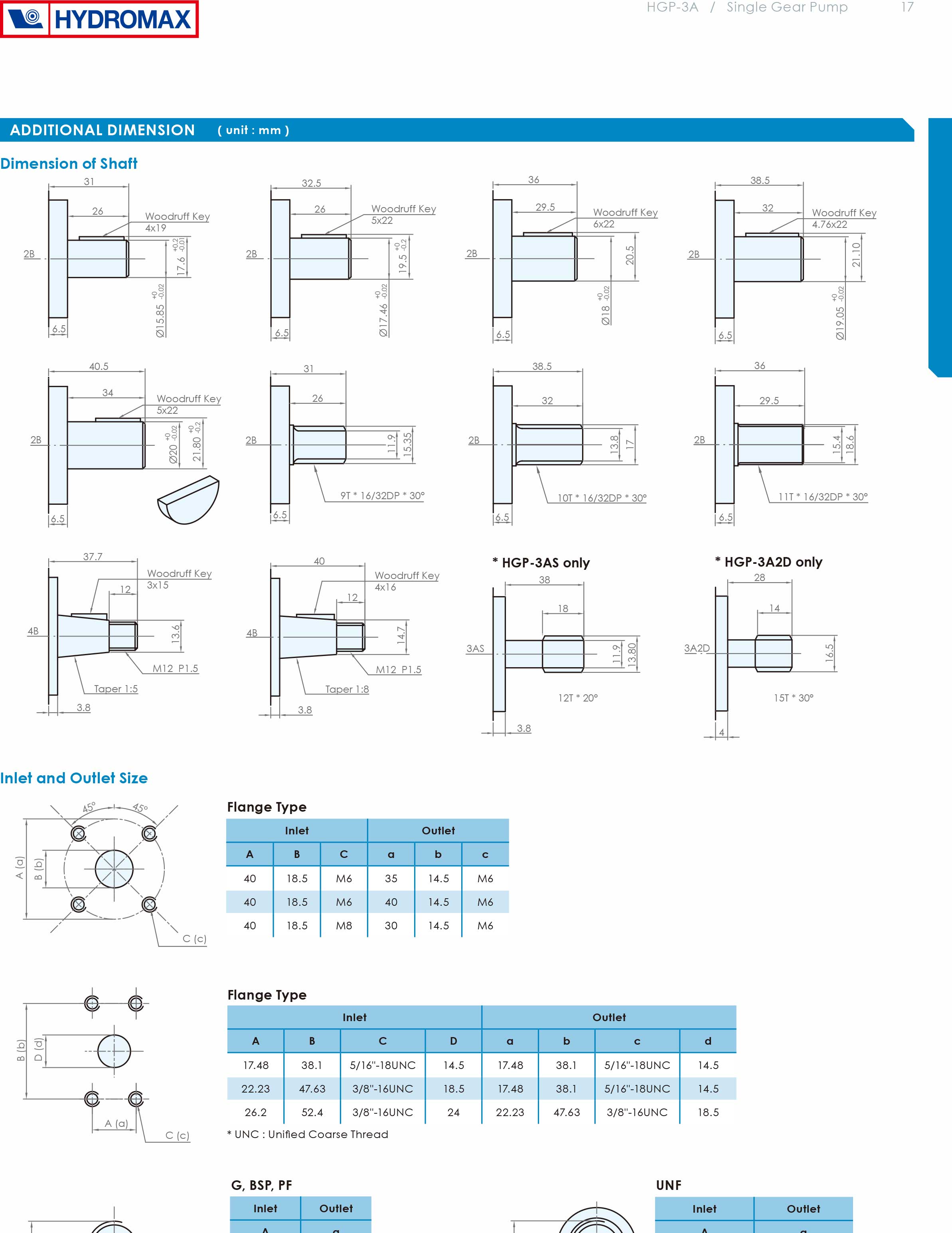

Shaft Type
|
X Straight Shaft
|
|
Y Spline Shaft
|
|
Z Taper Shaft
|
|
2B SAE 2-bolt
|
|
4BD DIN 4-bolt
|
|
4BE European 4-bolt
|
|
Inlet and Outlet*
|
F flange type(F1~F6)
|
|
P PT(P1~P2)
|
|
G G,BSP,PF(G1~G2)
|
|
U UNF(U1~U2)
|
Value Table
| |
|
Model
|
Accurate
|
Pressure
|
(kgf/cm2)
|
Speed
|
(r.p.m)
|
|
|
|
Weight(kg)
|
|
Displacement
|
Port Size
|
(PT)
|
|
Capacity
|
|
|
|
(cc/rev)
|
normal
|
Max
|
Rate
|
Max
|
Min
|
Inlet
|
Outlet
|
|
HGP-3A-2
|
2 |
210 |
250 |
1800 |
4000 |
700 |
3/4" |
1/2" |
2.19 |
|
HGP-3A- 3
|
3
|
210
|
250 |
1800 |
4000 |
700 |
3/4" |
1/2" |
2.23
|
|
HGP-3A-4
|
4
|
210 |
250 |
1800 |
4000 |
700 |
3/4" |
1/2" |
2.29 |
|
HGP-3A-6
|
6 |
210 |
250 |
1800 |
4000 |
700 |
3/4" |
1/2" |
2.37 |
|
HGP-3A-8
|
8.4 |
210 |
250 |
1800 |
3500 |
700 |
3/4" |
1/2" |
2.45 |
|
HGP-3A-11
|
11 |
210 |
250 |
1800 |
3000 |
600 |
3/4" |
1/2" |
2.60 |
|
HGP-3A-13
|
13 |
210 |
250 |
1800 |
3000 |
600 |
3/4" |
1/2" |
2.70 |
|
HGP-3A-14
|
14.3 |
210 |
250 |
1800 |
3000 |
500 |
3/4" |
1/2" |
2.76 |
|
HGP-3A-17
|
16.5 |
210 |
250 |
1800 |
3000 |
500 |
3/4" |
1/2" |
2.87 |
|
HGP-3A-19
|
19.2 |
210 |
250 |
1800 |
3000 |
500 |
3/4" |
1/2" |
2.99 |
|
HGP-3A-23
|
23 |
210 |
250 |
1800 |
3000 |
500 |
3/4" |
1/2" |
3.19 |
|
HGP-3A-25
|
25 |
175 |
210 |
1800 |
2800 |
500 |
1" |
3/4" |
3.24 |
|
HGP-3A-28
|
28 |
175 |
210 |
1800 |
2500 |
500 |
1" |
3/4" |
3.35 |
|
HGP-3A-30
|
30 |
175 |
210 |
1800 |
2500 |
500 |
1" |
3/4" |
3.45 |
|
HGP-3A-33
|
33 |
140 |
175 |
1200 |
2500 |
500 |
1" |
3/4" |
3.60 |
|
HGP-3A-35
|
35 |
125 |
140 |
1200 |
2500 |
500 |
1" |
3/4" |
3.71 |
