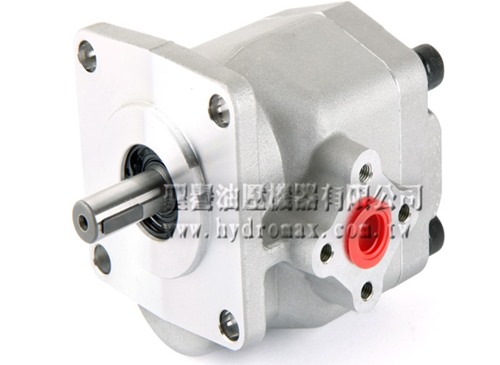

Hydromax gear pump HGP-2A

Displacement : 2~12 cc/rev
Max. Pressure : 250 kgf/cm2 ( 3500psi )
Flange : JIS 4-bolt

0đ 0đ
BUY NOW Delivery, payment upon delivery

QUICK ORDER BY HOTLINE

+84967 338 228

Order now just leave your PHONE NUMBER

DELIVERY TIME
  • FREE DELIVERY OF NATIONAL Fast, cheap cost
  • PAYMENT POLICY Quick and easy
  • CONVENIENT PAYMENT Many forms of payment
  • HOTLINE CONSULTING +84 967 338 228
  • ADDRESS 3505 Phạm Thế Hiển, P.7, Q.8

Order code:

Model Name

HGP-2A

Mounting

F Flange Type

L Foot Type

Delivery Capacity

2,3,4,5,6,8,9,11,12

Rotation Direction

R Clockwise

L Counter-Clockwise

Shaft Type*

X Straight Shaft

Y Spline Shaft

Z Taper Shaft

W Tang shaft

Flange Mounting Type

4BJ JIS 4-bolt

Inlet and Outlet*

F flange type(F1)

G G,BSP,PF(G1~G2)

P PT(P1~P2)



Bơm Hydromax

Hydromax gear pump hgp-2a

Bom thuy luc Hydromax

Hydromax Pump

Value table:

Model

Accurate

Pressure

(kgf/cm2)

Speed

(r.p.m)

　

Weight(kg)

Displacement

Capacity

(cc/rev)

normal

Max

Rate

Max

Min

HGP-2A-2

2

210

250

1800

5000

1000

1.69

HGP-2A-25

2.5

210

250

1800

4500

850

1.70

HGP-2A-3

3

210

250

1800

5000

850

1.70

HGP-2A-4

4

210

250

1800

4500

800

1.71

HGP-2A-5

5

210

250

1800

3500

700

1.71

HGP-2A-6

6

210

250

1800

3500

700

1.72

HGP-2A-8

7.5

210

250

1800

3000

600

1.74

HGP-2A-9

9

210

250

1800

2500

550

1.74

HGP-2A-11

10.5

210

250

1800

2000

500

1.74

HGP-2A-12

12

175

210

1800

2000

500

1.76



Bom thuy luc Hydromax

Hydromax Pump
