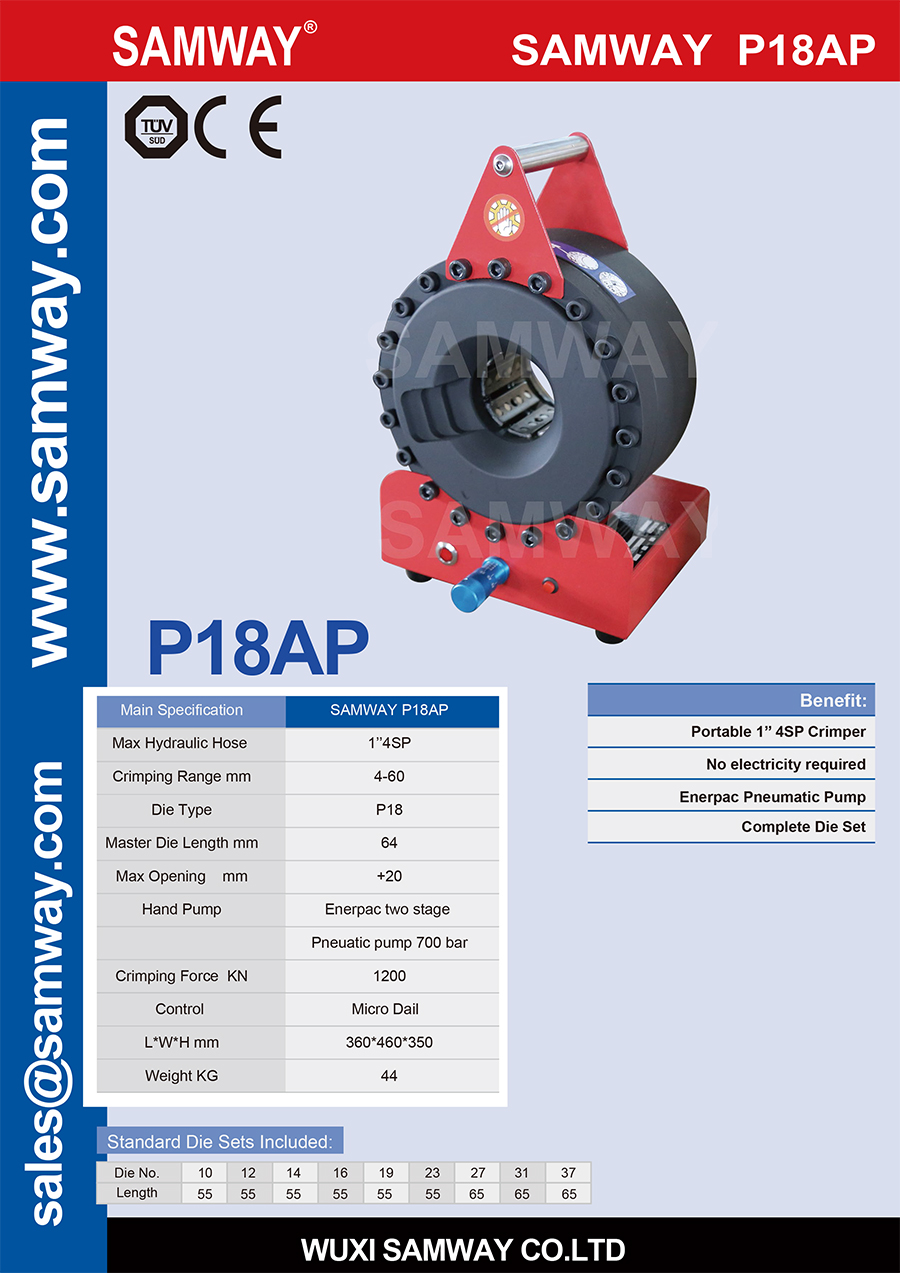

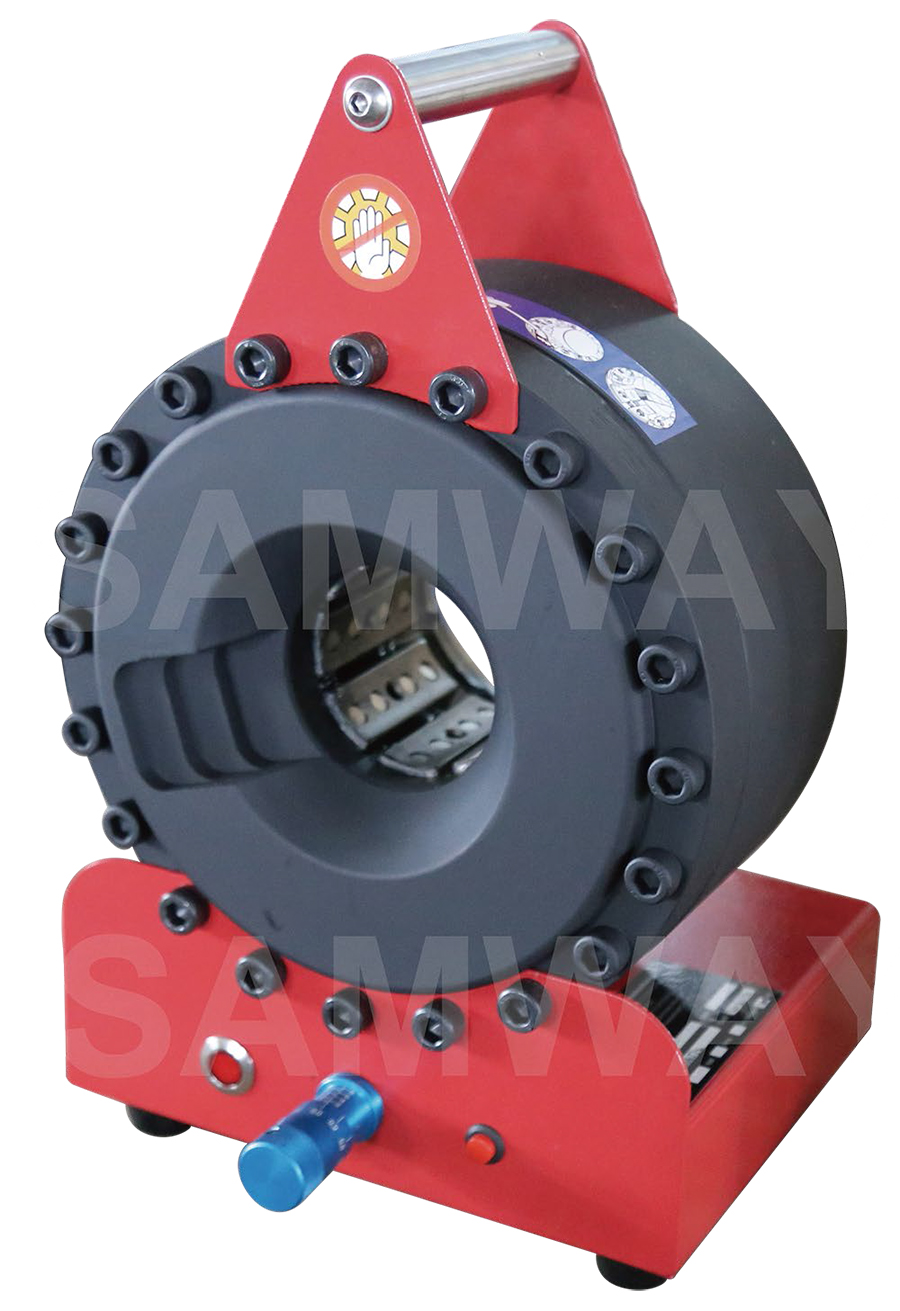

P18AP Hydraulic Hose Crimping Machine
Feature description：
● Portable 1" 4SP Crimper
● No electricity required
● Enerpac Pneumatic Pump
● Complete Die Set
P18AP Hydraulic Hose Crimping Machine
Specification：
| Main Specification |
SAMWAY P18AP |
| Max Hydraulic Hose |
1" 4SP |
| Crimping Range mm |
4-60 |
| Die Type |
P18 |
| Master Die Length mm |
64 |
| Max Opening mm |
+20 |
| Hand Pump |
Enerpac two stage Pneuatic pump 700 bar |
| Crimping Force KN |
1200 |
| Control |
Micro Dail |
| L*W*H mm |
360*460*350 |
| Weight KG |
44 |
Standard Die Sets Included：
| Die No. |
10 |
12 |
14 |
16 |
19 |
23 |
27 |
31 |
37 |
| Length |
55 |
55 |
55 |
55 |
55 |
55 |
65 |
65 |
65 |
Order No.
Hand Pump Model P18HP :00001910
Pneumatic Pump Model P18AP :00001911
View more: P18AP Hydraulic Hose Crimping Machine
