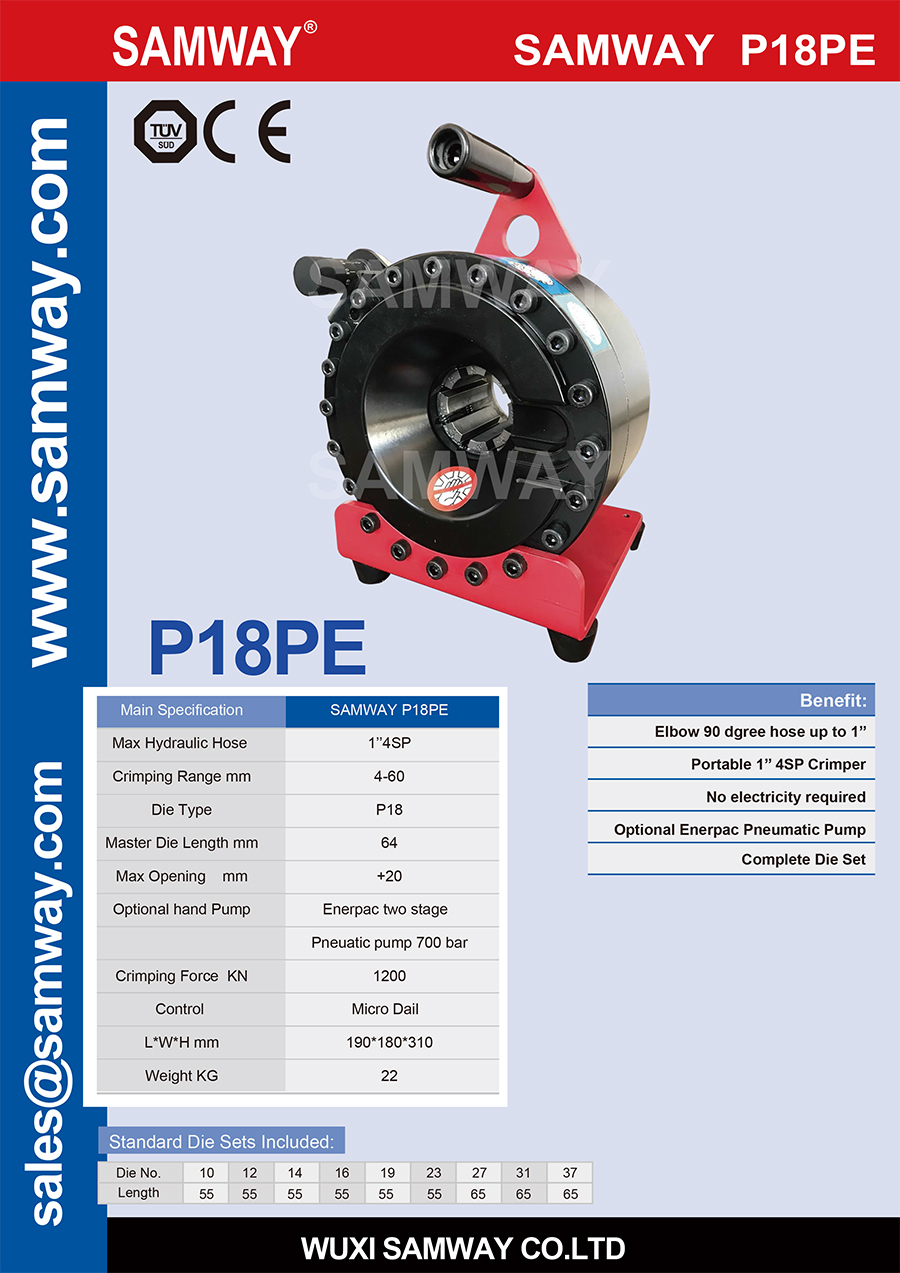

P18PE Hydraulic Hose Crimping Machine
Feature description：
● Elbow 90 dgree hose up to 1’’
● Portable 1’’ 4SP Crimper
● No electricity required
● Optional Enerpac Pneumatic Pump
● Complete Die Set
P18PE Hydraulic Hose Crimping Machine
Specification：
| Main Specification |
SAMWAY P18PE |
| Max Hydraulic Hose |
1" 4SP |
| Crimping Range mm |
4-60 |
| Die Type |
P18 |
| Master Die Length mm |
64 |
| Max Opening mm |
+20 |
| Optional hand Pump |
Enerpac two stage pump 700 bar |
| Crimping Force KN |
1200 |
| Control |
Micro Dail |
| L*W*H mm |
190*180*310 |
| Weight KG |
22 |
Standard Die Sets Included：
| Die No. |
10 |
12 |
14 |
16 |
19 |
23 |
27 |
31 |
37 |
| Length |
55 |
55 |
55 |
55 |
55 |
55 |
65 |
65 |
65 |
