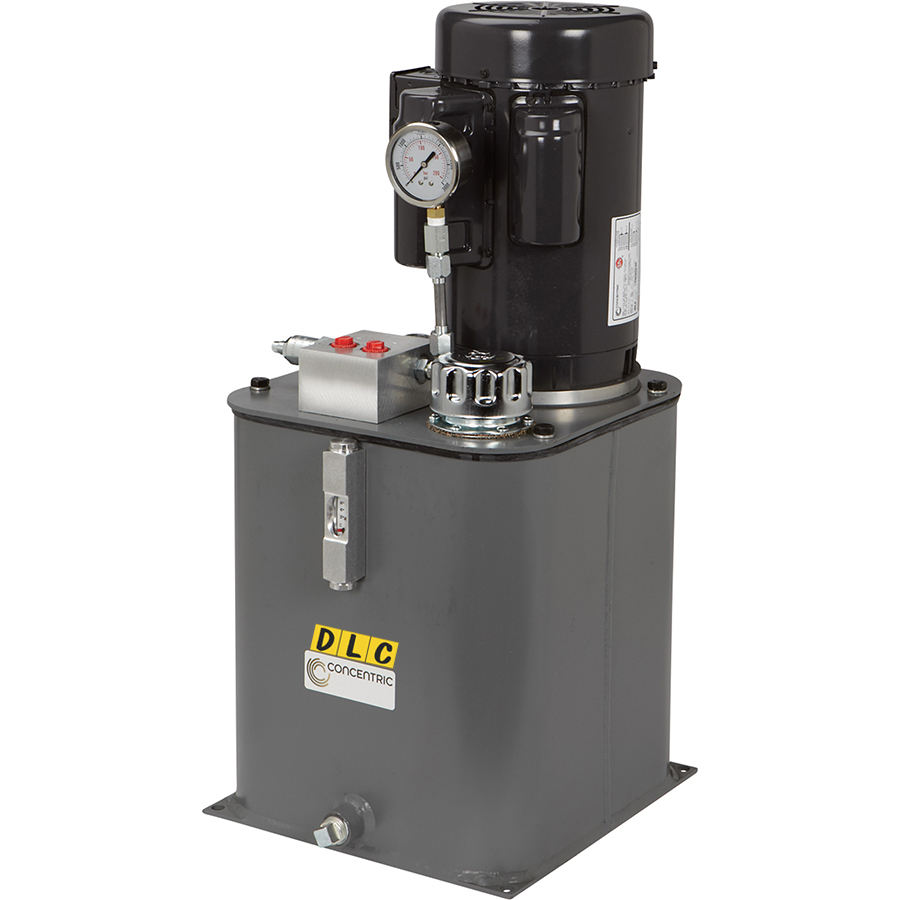

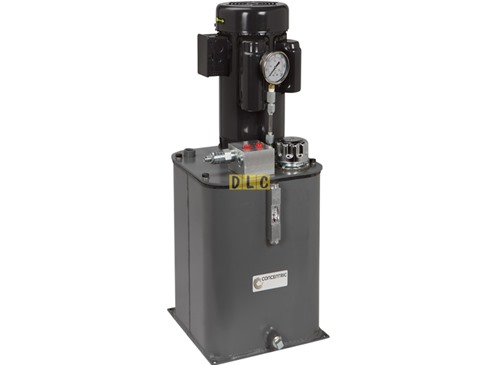

Haldex hydraulic power unit model 1400028

Product Summary

Haldex hydraulic wide variety of industrial applications. All models have 1,725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3,000 PSI pressure gauge. High strength cast iron housing. DU® bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low viscosity fluids in high temps and high duty cycle applications. Does not include manifold or interface.

Haldex hydraulic power units are designed specifically to operate on AC electric power. Each power unit is a custom selected assembly consisting of a high performance hydraulic pump, reservoir, motor, manifold interface block, relief valve, pressure gauge and oil level sight gauge with thermometer. They are controlled with NFPA D03 (D01) directional control valves. Manifold and valve sold separately. The power units can be coupled via suitable hydraulic lines to a wide range of operating mechanisms.

They normally operate hydraulic cylinders, but can be used with any other hydraulic actuating device. Unpacking Check unit for any shipping damage. The contents of the carton will include (1) AC hydraulic power unit fully assembled and tested. If there is any noticeable damage, please contact the office where item was purchased. Specifications All units have: • Totally enclosed fan cooled motors • Motors have continuous horsepower ratings (see chart) • Adjustable relief valve preset at factory • Reservoirs plumbed for vertical mount • 5 & 15 gallon rectangular reservoir • 100 mesh inlet strainer

Key Specs
