Product Summary

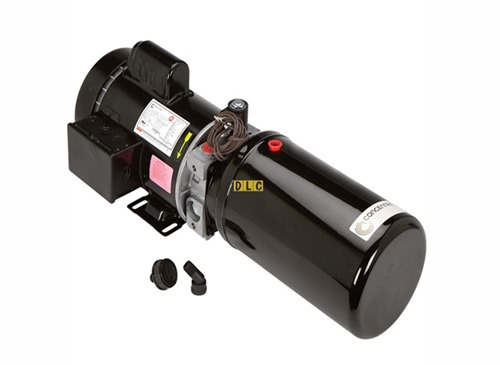

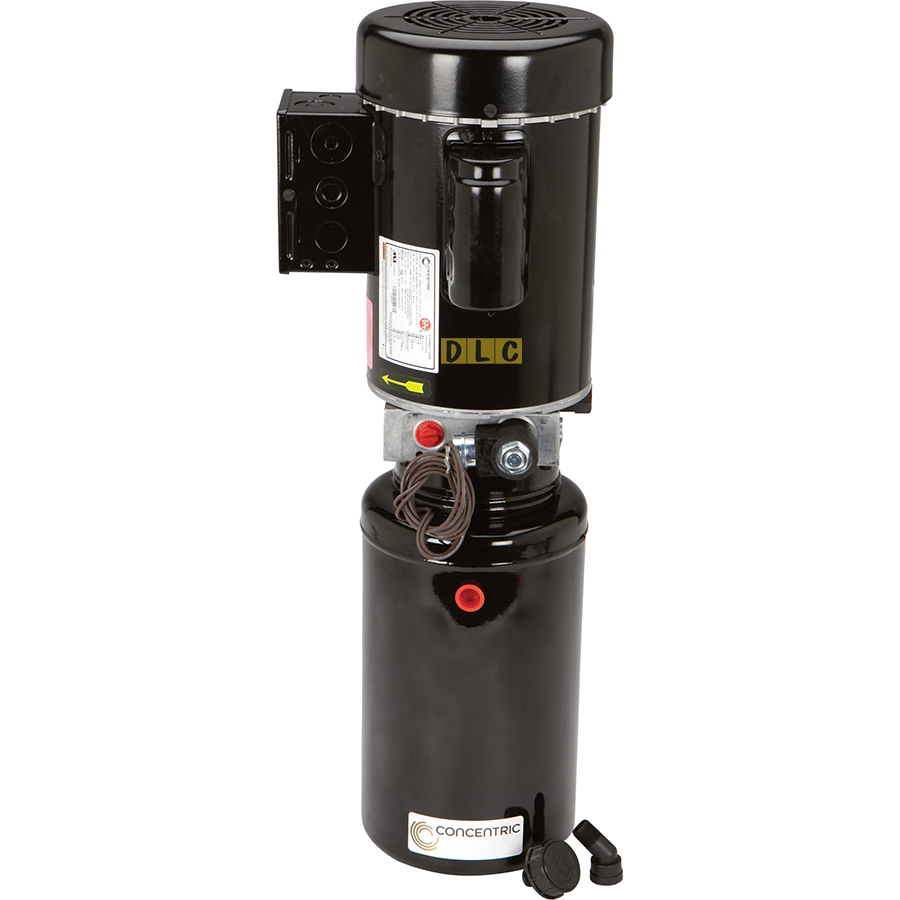

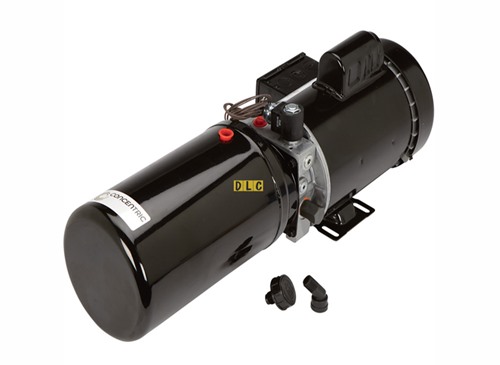

Mounts vertically or horizontally. 60 Hz TEFC motor turns at 3,450 RPM. .097 displacement pump and 1.5 gallon reservoir. Relief valve set at 2,000 PSI. 1.25 GPM with check valve to prevent back flow.
Features + Benefits
- Power Unit: Solenoid Operated
- Relief valve torque can be adjusted from 114 to 180 in. lbs.
Key Specs
| Item# |
105891 |
| Brand |
Haldex |
| Manufacturer's Warranty |
1 year Limited Warranty |
| Ship Weight |
56.0 lbs |
| Flow (GPM) |
1.25 |
| Reservoir Capacity |
1.5 gal. |
| Inlet Port (in.) |
9/16-18 SAE |
| Outlet Port (in.) |
9/16-18 SAE |
| Volts |
115, 208, 230 AC |
| Max. RPM |
3,450 |
| Phase |
1 |
|
Item#
|
105891
|
|
Brand
|
Haldex
|
|
Manufacturer's Warranty
|
1 year Limited Warranty
|
|
Ship Weight
|
56.0 lbs
|
|
Flow (GPM)
|
1.25
|
|
Reservoir Capacity
|
1.5 gal.
|
|
Inlet Port (in.)
|
9/16-18 SAE
|
|
Outlet Port (in.)
|
9/16-18 SAE
|
|
Volts
|
115, 208, 230 AC
|
|
Max. RPM
|
3,450
|
|
Phase
|
1
|
