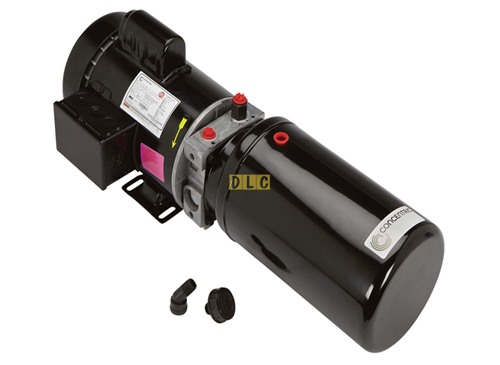

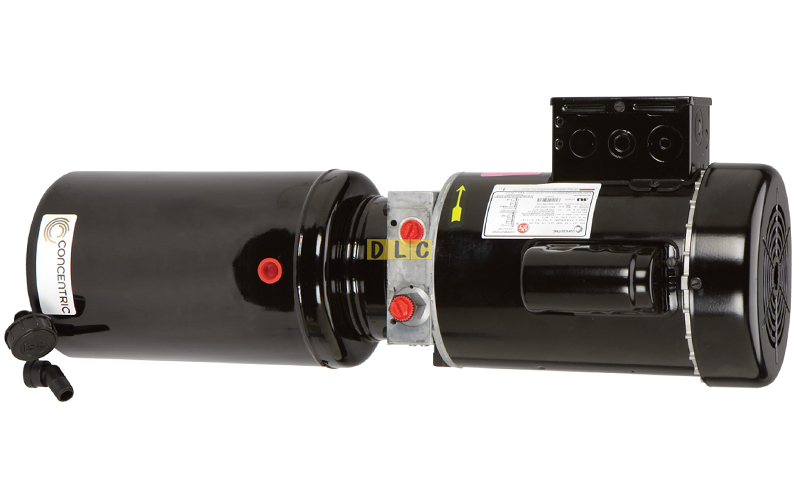

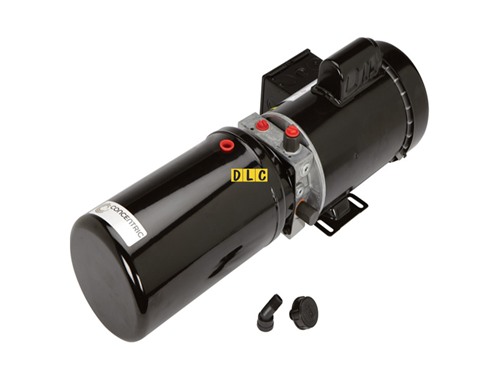

Product Summary
Mounts vertically or horizontally. 60 Hz TEFC motor turns at 3,450 RPM. .097 displacement pump and 1.5 gallon reservoir. Relief valve set at 2,000 PSI. 1.25 GPM with check valve to prevent back flow.
Features + Benefits
- Power Unit: Basic (no valving)
Key Specs
|
Item#
|
105871
|
|
Brand
|
Haldex
|
|
Manufacturer's Warranty
|
1 year Limited Warranty
|
|
Ship Weight
|
55.0 lbs
|
|
Displacement (cc)
|
1.59
|
|
Displacement (cu. in.)
|
0.097
|
|
Flow (GPM)
|
1.25
|
|
Reservoir Capacity
|
1.5 gal.
|
|
Inlet Port (in.)
|
9/16-18 SAE
|
|
Outlet Port (in.)
|
9/16-18 SAE
|
|
Max. PSI
|
3,000
|
|
Volts
|
115, 208, 230
|
|
Max. RPM
|
3450
|
|
Phase
|
Single
|
|
