Hydromax offers a complete line of Hydraulic gear Pump HGP-5AI to serve virtually every industry with high qualitative and reliable customer oriented tailored products. We offer many solutions to your hydraulic gear pump, tractor hydraulic pump , truck hydraulic pump, hydraulic pumps for cars needs. To help find the right product for your project, reference this selection guide
Product Category: Gear Pump

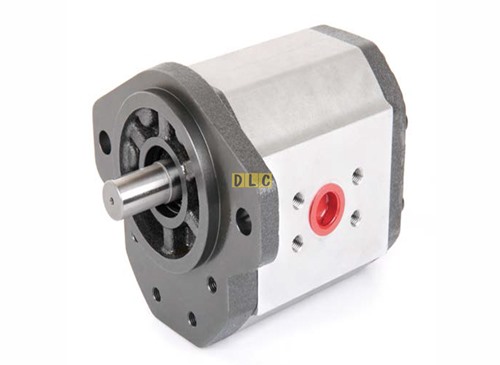

Item: Gear Pump HGP-5AI
Brand: HYDROMAX
Model: HGP-5AI
Country of Origin: Taiwan
Order code
|
Model Name
|
HGP-5AI
|
|
Mounting
|
F Flange Type
|
|
L foot type
|
|
Delivery Capacity
|
22,26,33,44,48,55,63,75,80,90
|
|
Rotation Direction
|
R Clockwise
|
|
L Counter-Clockwise
|
|
Shaft Type
|
X Straight Shaft
|
|
Y Spline Shaft
|
|
Z Taper Shaft
|
|
Flange Mounting Type
|
2B SAE 2-bolt
|
|
4BD DIN 4-bolt
|
|
Inlet and Outlet*
|
F flange type(F1~F8)
|
|
G G,BSP,PF(G1~G4)
|
|
P PT(P1~P2)
|
|
U UNF(U1~U6)
|
Value table
|
Model
|
Accurate
|
Pressure
|
(kgf/cm2)
|
Speed
|
(r.p.m)
|
|
|
Weight(kg)
|
|
Displacement
|
Port Size
|
(PT)
|
|
Capacity
|
|
|
|
(cc/rev)
|
normal
|
Max
|
Loaded
|
Unloaded
|
Inlet
|
Outlet
|
|
HGP-5AI-22
|
22 |
280 |
330 |
3000 |
700 |
1" |
3/4" |
8.96 |
|
HGP-5AI-26
|
26 |
280 |
330 |
3000 |
700 |
1" |
3/4" |
9.04 |
|
HGP-5AI-33
|
33 |
280 |
330 |
3000 |
700 |
1" |
3/4" |
9.18 |
|
HGP-5AI-44
|
44 |
240 |
290 |
3000 |
700 |
1 1/4" |
1" |
9.40 |
|
HGP-5AI-48
|
48 |
240 |
290 |
3000 |
700 |
1 1/4" |
1" |
9.48 |
|
HGP-5AI-55
|
55 |
210 |
255 |
3000 |
700 |
1 1/4" |
1" |
9.62 |
|
HGP-5AI-63
|
63 |
210 |
240 |
3000 |
600 |
1 1/4" |
1" |
9.78 |
|
HGP-5AI-75
|
75 |
190 |
210 |
3000 |
600 |
1 1/4" |
1" |
10.02 |
|
HGP-5AI-80
|
80 |
180 |
210 |
3000 |
600 |
1 1/4" |
1" |
10.12 |
|
HGP-5AI-90
|
90 |
170 |
190 |
2500 |
600 |
1 1/4" |
1" |
10.32 |
