Hydromax offers a complete line of Hydraulic Pump HGP-4A to serve virtually every industry with high qualitative and reliable customer oriented tailored products. We offer many solutions to your hydraulic gear pump, hydraulic pump repair, gear oil pump needs. To help find the right product for your project, reference this selection guide
Hydromax provides a complete line of HGP- 4A gear pumps to serve almost all industries with high quality and reliable product-oriented customers. We offer many solutions for your hydraulic, hydraulic, hydraulic components, hydraulic oil pump needs. To help find the right product for your project, refer to this selection guide

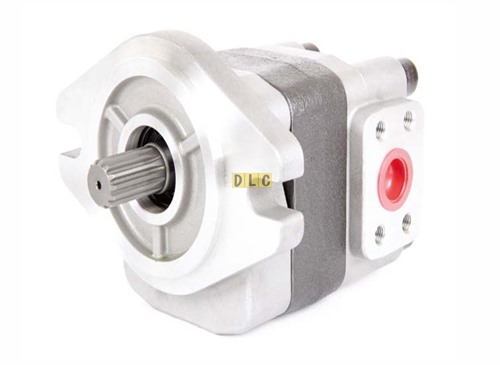

HGP high pressure gear pump uses high-strength, sealed casting using auxiliary chamber, shaft seal uses floating pressure balance plate, thus achieving high efficiency. The pump has small volume, light weight, good performance, reliable work, etc. Ontology adopts aluminum alloy, high precision mold design, low noise, long service life.
Particularly suitable for petroleum, chemical industry, grain and oil, construction materials, daily chemicals, construction, electric and asphalt concrete mixing plants and industrial fuel injection occasions. Also more suitable for stable work pressure, long-term continuous work, such as: strong lubrication system, etc. Lifting transport machinery, construction machinery, petroleum machinery, machinery agriculture and other mechanical equipment. It is possible with low pressure mass flow propeller pumps to be combined with high and low pump, rational use of main energy, cost savings.
Product Category: Gear pump HGP-3AI
Brand: HYDROMAX
Model: HGP-3AI
Country of origin: Taiwan
Order code:
|
Model Name
|
HGP-4A
|
|
Mounting
|
F Flange Type
|
|
Delivery Capacity
|
20,23,25,28,32,36,40,45,50,55,60,70
|
|
Rotation Direction
|
R Clockwise
|
|
L Counter-Clockwise
|
|
Shaft Type
|
X Straight Shaft
|
|
Y Spline Shaft
|
|
Z Taper Shaft
|
|
Flange Mounting Type
|
2BA SAE 2-bolt (Type A)
|
|
2BB SAE 2-bolt (Type B)
|
|
Inlet and Outlet*
|
F flange type(F1~F2)
|
|
P PT(P1~P2)
|
|
G G,BSP,PF(G1~G2)
|
